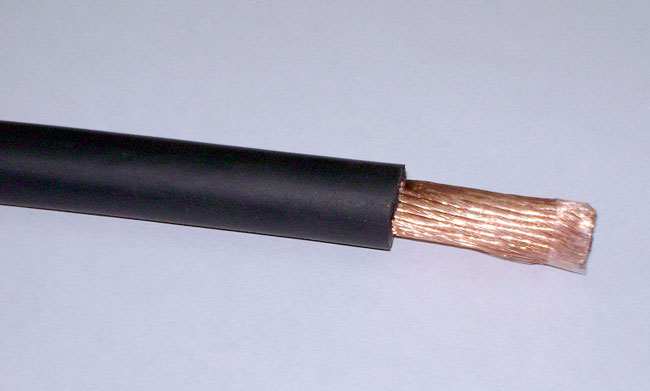

weld1

HOFR Welding Cable

Cable Structure
– Class 6 ABC
– HOFR Elastomer insulation

Category:

Enquiry about HOFR Welding Cable

Special Features :

  • Technical Sound With Guaranteed Life
  • Saving of 40% Operating Cost
  • Works at High Temperature
  • Power Efficient
  • Fully Tested
  • Extra Safe & Flexible
  • Heavy Duty in Current



Welding Cable With International Specfication

  • HO1N2-D
  • HO1N2-E
  • 361 TQ
  • TPR / PVC



  • WELDING CABLE (COPPER /ALUMINIUM CONDUCTOR) GENERAL PURPOSE / HOFR RUBBER COMPOUND CONERED ISI MARKED
COPPER Nominal Cross section Area of conductor Number / Nom. Dia of Wires Thickness of Insulation (Nominal) Current Rating (AMP.) At Following Duty Cycle
General Purpose Compound HOFR Compound
Mm2 Mm Mm 100% 60% 30% 100% 60% 30%
16 510/0.2 2 94 121 172 135 174 246
25 796/0.2 2 125 161 228 177 228 343
35 1114/0.2 2 156 201 285 221 285 403
50 707/0.3 2.2 197 254 360 279 360 509
70 990/0.3 2.4 248 320 453 352 454 643
95 1344/0.3 2.6 299 386 546 424 547 774





ALUMINIUM Nominal Cross section Area of conductor Number / Nom. Dia of Wires Thickness of Insulation (Nominal) Current Rating (AMP.) At Following Duty Cycle
General Purpose Compound HOFR Compound
Mm2 Mm Mm 100% 60% 30% 100% 60% 30%
25 355/0.3 2 100 129 183 144 186 263
35 495/0.3 2 123 159 225 176 227 321
50 707/0.3 2.2 155 200 283 222 287 405
70 990/0.3 2.4 196 253 358 280 361 511
95 1344/0.3 2.6 237 306 433 339 438 619
120 1697/0.3 2.8 283 365 517 404 522 738





  •  Working Tem. TRS – 60°C – HOFR – 90°C Recommended Cables Size For Welding Electrodes
Electrode Size Equivalent CABLE as per IS : 434 MANUAL WELDING
COPPER ALUMINIUM
SWG Mm HOFR sq.mm TRS  sq.mm HOFR sq.mm TRS  sq.mm
10 3.15 150 A 16 25 25 35
8 4 230 A 25 35 35 50
8* 4* 400 A* 35 50 50 70
6 5 600 A 50 70 70 95
4 6 800 A 70 95 95 120
2 7 1000 A 95 120 120 –
