EPR H 1.1kV

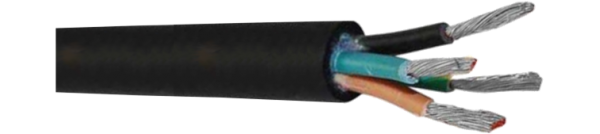

Cable Structure
- Class 5 tinned copper conductor as per IEC 60228 and IS 8130
- Polyester taped conductor
- EPR Insulation
- Cores twisted
- ZHLS outer sheath, black
Enquiry about EPR H 1.1kV
Standard References
- IS 9968
Special Features
- Low bend diameter
- Highly flexible
- Excellent electrical properties
- Excellent oil resistance
- Higher temperature and short circuit temperature rating
- Low temperature performance
Application Range
- Industrial machinery and air conditioning systems
- For general purpose installations in dry or wet environment subjected to low mechanical loads
- Suitable for areas with oil vapors at room temperature
- Applications demanding frequent movement
Technical Data
- Temperature Range : -30°C to +90°C
- Nominal Voltage : U0/U 1.1KV
- Test Voltage : 3000 V
- Insulation Resistance : min. 200 Mohm x km
- Min. Bending Radius : 6 x cable dia
- Short circuit temperature : Upto 250°C
- Flame retardance : As per IEC 60332-1 (self extinguishing)
NOTE :
- G – with GN-YE protective core
- X – without protective core
