AYWY AL PVC

AYWY

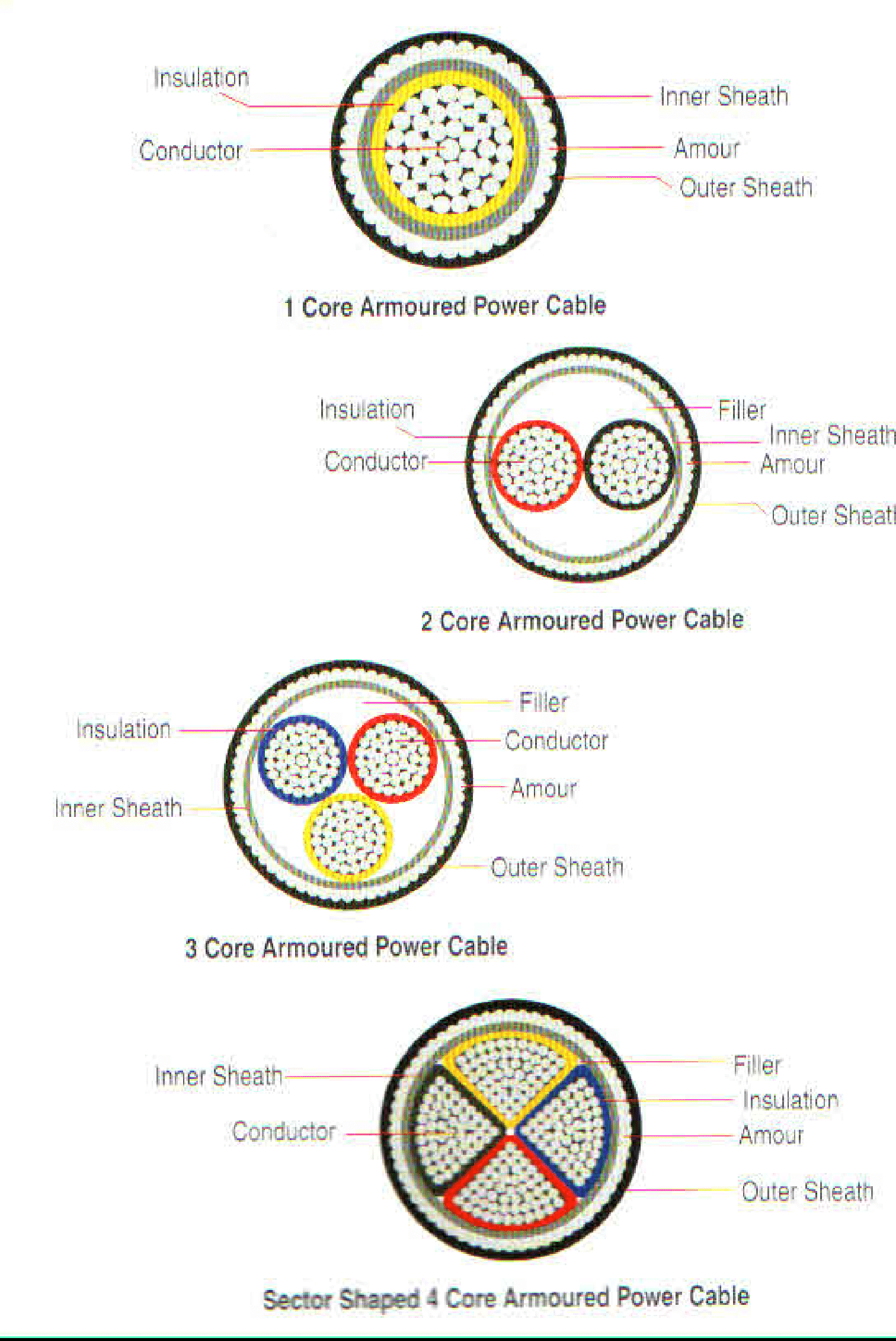

Cable Structure

    • Class : 2 Stranded Aluminium Wire As Per IS:8130
    • Insulated : XLPE AS Per IS:7098
    • Core Identification :
      • 1 Core : Black / Red / White
      • 2 Core : Black,Red
      • 3 Core : Black,Yellow,Blue
      • 4 Core : Black,Yellow,Blue & Black
    • Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831
    • Armouring : H.D.Aluminium / G.I. wire as per IS:3975
    • Outer Sheath : PVC ST2 Grade as per IS:5831
Category: Tag:

Enquiry about AYWY

Standard References

  • IS:1554/Pt. 1/1988

Special Features

  • Very Economical
  • Light Weight
  • Better Fire Properties than XLPE Variant
  • Better UV Properties than XLPE Variant

Variants :

  • FR
  • FRLS
  • 85 Degree

Application Range

  • General And Industrial Application Plant Wiring
  • Under And Ground Cables Which Require High Physical Strength

Technical Data

  • Temperature Range : -15°C to +70°C
  • Test Voltage : a.c.3 KV (rms)
  • Insulation Resistance : 1 x 1013 ohm-CM
  • Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable)
  • Short Circuit Temperature: 160°C
  • Voltage Rated : 650 / 1100 Volts





  • DIMENSIONAL TABLES,POWER CABLES – ALUMINIUM / PVC / WIRE ARMOURED / PVC, TABLE – 1 SINGLE CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHED H.D.AL.WIRE  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
1 x 4.0 3 1.3 11 155 7.41 27
1 x 6.0 3 1.3 12 175 4.61 35
1 x 10.0 7 1.3 13 205 3.08 47
1 x 16.0 7 1.3 14 230 1.91 65
1 x 25.0 7 1.5 15 300 1.2 84
1 x 35.0 7 1.5 16 350 0.868 105
1 x 50.0 19 1.7 18 430 0.641 130
1 x 70.0 19 1.7 20 530 0.443 155
1 x 95.0 19 1.9 22 725 0.32 190
1 x 120.0 37 1.9 23 840 0.253 220
1 x 150.0 37 2.1 25 985 0.206 250
1 x 185.0 37 2.3 27 1155 0.164 290
1 x 240.0 61 2.5 30.5 1440 0.125 335
1 x 300.0 61 2.7 33 1715 0.1 380
1 x 400.0 61 3 37.5 2070 0.0778 435
1 x 500.0 61 3.4 42 2720 0.0605 480
1 x 630.0 91 3.9 47 3430 0.0469 550
1 x 800.0 91 3.9 55.3 5660 0.0367 640
1 x 1000.0 91 3.9 60.4 6617 0.0291 720





  • TWO / THREE / FOUR CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHED G.I. WIRE ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
 Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current rating (Amp)
SQ.MM
2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core
4 3 1 15 17 18 450 500 550 7.41 27 23 23
6 3 1 16 18.5 19.5 500 575 650 4.61 35 30 30
10 7 1 18 20.5 22 600 700 900 3.08 47 40 40
16 6 1 19 21.5 23.5 704 890 1005 1.91 59 51 51
25 6 1.2 21 24 27 865 1080 1235 1.2 78 70 70
35 6 1.2 3 25.5 29.5 995 1240 1515 0.868 99 86 86
50 6 1.4 26 29 34 1210 1600 2095 0.641 125 105 105
70 12 1.4 28 33 37.5 1435 2105 2435 0.443 150 130 130
95 15 1.6 32 37 42 1765 2575 3100 0.32 185 155 155
120 15 1.6 35 40 45.5 2255 2945 3575 0.253 210 180 180
150 15 1.8 37 43 51 2560 3520 4610 0.206 240 205 205
185 30 2 41.5 49 56.5 3385 3505 4810 0.164 275 240 240
240 30 2.2 46.5 54 62.5 4085 5355 6590 0.125 224 280 280
300 30 2.4 67.56 72.1 79.68 6455 7871 9529 0.1 365 315 315
400 30 2.6 75.6 80.83 89.4 7729 9830 11609 0.0778 420 375 375





  • THREE AND HALF CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHER G.I. WIRE  ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
M N M N M N
3.5 X 25 6 6 1.2 1 25.5 1210 1.2 1.91 70
3.5 X 35 6 6 1.2 1 28 1390 0.868 1.91 86
3.5 X 50 6 6 1.4 1.2 31 1705 0.641 1.2 105
3.5 X 70 12 6 1.4 1.2 35 2305 0.443 0.868 130
3.5 X 95 15 6 1.6 1.4 40 2895 0.32 0.641 155
3.5 X 120 15 12 1.6 1.4 42.5 3390 0.253 0.868 180
3.5 X 150 15 12 1.8 1.4 47 3885 0.206 0.868 205
3.5 X 185 30 15 2 1.6 52.5 5060 0.164 0.32 240
3.5 X 240 30 15 2.2 1.6 59 6190 0.125 0.253 280
3.5 X 300 30 15 2.4 1.8 67.7 8019 0.1 0.206 315
3.5 X 400 30 30 2.6 2 74 9593 0.0778 0.164 375
