AYFY AL PVC

AYFY

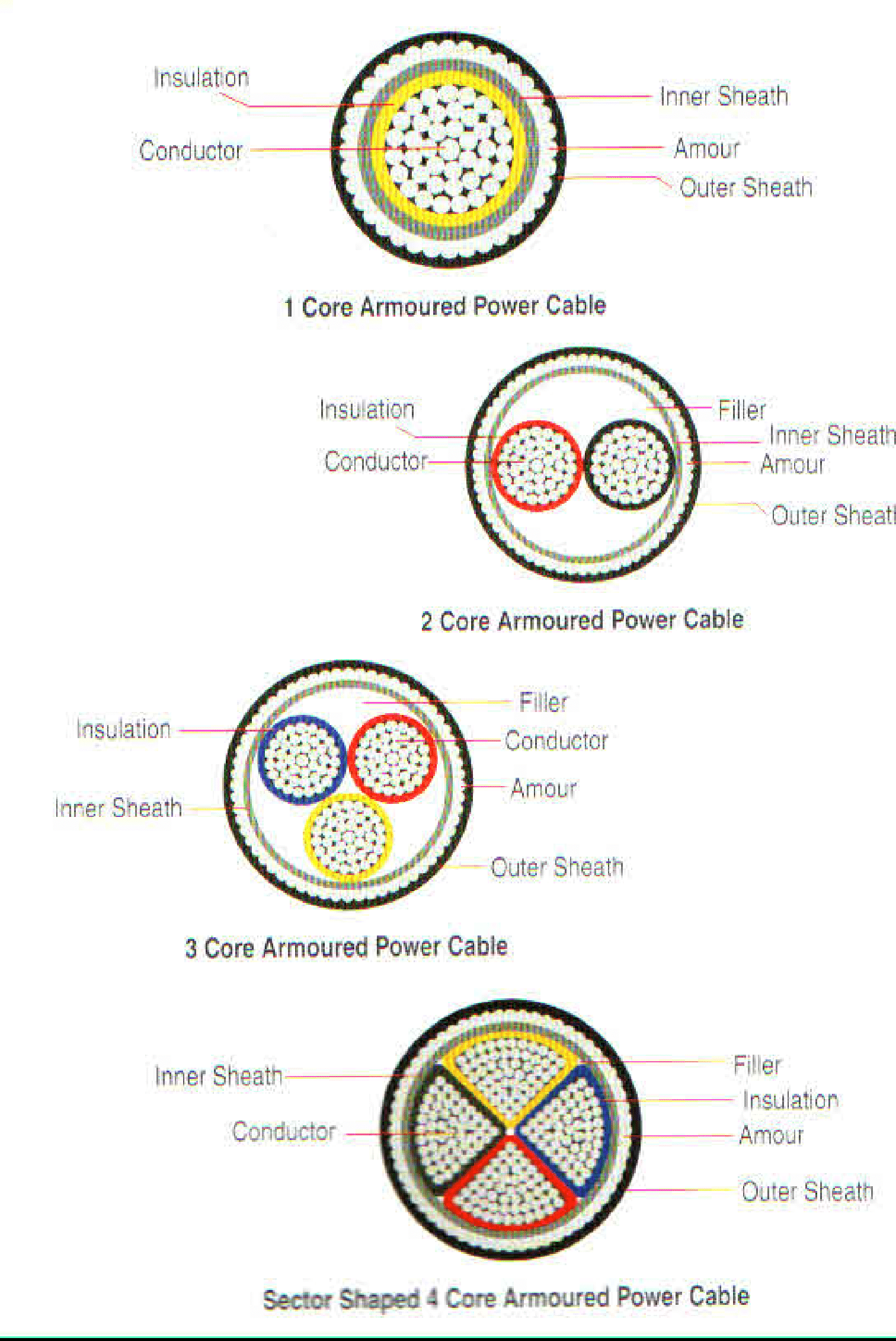

Cable Structure

    • Class : 2  Stranded Aluminium Wire As Per IS:8130
    • Insulated : PVC (Polyvinyl Chioride) As per IS:5831
    • Core Identification:
      • 1 Core : Black / Red / White
      • 2 Core : Black,Red
      • 3 Core : Black,Yellow,Blue
      • 4 Core : Black,Yellow,Blue & Black
    • Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831
    • Armouring : H.D.Aluminium / G.I. wire as per IS:3975
    • Outer Sheath : PVC ST2 Grade as per IS:5831
Category:

Enquiry about AYFY

Standard References

  • IS:1554/Pt. 1/1988

Special Features

  • Light Weight
  • Better Fire Properties than XLPE Variant
  • Better UV Properties than XLPE Variant

Variants :

  • FR
  • FRLS
  • 85 Degree

Application Range

  • General And Industrial Application Plant Wiring
  • Under And Ground Cables Which Require High Physical Strength

Technical Data

  • Temperature Range : -15°C to +70°C
  • Test Voltage : a.c.3 KV (rms)
  • Insulation Resistance : 1 x 1013 ohm-CM
  • Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable)
  • Short Circuit Temperature:/b>  160°C
  • Voltage Rated : 650 / 1100 Volts





  • DIMENSIONAL TABLES,POWER CABLES – ALUMINIUM / PVC / STRIP ARMOURED / PVC, TABLE – 1 SINGLE CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHED H.D.AL.STRIP  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
1 x 95.0 19 1.9 21 1200 0.193 245
1 x 120.0 37 1.9 22 1460 0.153 280
1 x 150.0 37 2.1 24 1770 0.124 320
1 x 185.0 37 2.3 26 2170 0.0991 370
1 x 240.0 61 2.5 29 2740 0.0754 425
1 x 300.0 61 2.7 32 3360 0.0601 475
1 x 400.0 61 3 36 4400 0.047 550
1 x 500.0 61 3.4 40 5450 0.0366 590
1 x 630.0 91 3.9 44 6820 0.0283 660
1 x 800.0 91 3.9 52.8 4974 0.0367 640
1 x 1000.0 91 3.9 57.9 5851 0.0291 720





  • TWO / THREE / FOUR CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHED G.I. STRIP ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
 Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Cable Diameter Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current rating (Amp)
SQ.MM
2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core
10 6 1 20 910 1.83 52
16 6 1 18 20 23 700 950 1135 1.15 78 66 66
25 6 1.2 20 22 24 955 1270 1560 0.727 105 90 90
35 6 1.2 21.5 25 27 1180 1600 2015 0.524 125 110 110
50 6 1.4 24.5 27 31 1410 2150 2690 0.387 155 135 135
70 12 1.4 28 31 36 1965 2800 3460 0.268 195 165 165
95 15 1.6 31 34 38 2610 3670 4715 0.193 230 200 200
120 18 1.6 33 38 42 3115 4470 5715 0.153 265 230 230
150 18 1.8 37 42 46 3750 5500 6950 0.124 305 265 265
185 30 2 40.5 46 51 4645 6650 5790 0.0991 350 305 305
240 30 2.2 45 52 58 6010 8450 10960 0.0754 410 355 355
300 30 2.4 62.8 67.2 74.9 4061 5288 6646 0.1 365 315 315
400 30 2.6 70.9 76.13 84.7 5002 6587 8322 0.0778 420 375 375

Note : 2C X 11 & 3C X 10 sq.mm size – As per IS :1554 Strip Armouring Is not Applicable



  • THREE AND HALF CORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHER G.I. WIRE  ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Cable Diameter Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
M N M N M N
3.5 X 25 6 6 1.2 1 25.5 1175 0.727 1.15 90
3.5 X 35 6 6 1.2 1 26.5 1450 0.524 1.15 110
3.5 X 50 6 6 1.4 1.2 29.5 1970 0.387 0.727 135
3.5 X 70 12 6 1.4 1.2 34 750 0.268 0.524 165
3.5 X 95 15 6 1.6 1.4 38 3845 0.193 0.387 200
3.5 X 120 18 12 1.6 1.4 41 4620 0.153 0.268 230
3.5 X 150 18 12 1.8 1.4 45 5490 0.124 0.268 265
3.5 X 185 30 15 2 1.6 50 6895 0.0991 0.193 305
3.5 X 240 30 18 2.2 1.6 56 8965 0.0754 0.153 355
3.5 X 300 30 15 2.4 1.8 64.7 5631 0.1 0.206 315
3.5 X 400 30 30 2.6 2 70.9 6988 0.0778 0.164 375





  • TABLE – 4 MULTICORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHER G.I. STRIP  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
12 X 1.5 1 0.8 19 665 12.1 10
14 X 1.5 1 0.8 20 750 12.1 10
16 X 1.5 1 0.8 21 840 12.1 9
19 X 1.5 1 0.8 22 920 12.1 8
21 X 1.5 1 0.8 23.5 1040 12.1 8
24 X 1.5 1 0.8 25 1180 12.1 8
27 X 1.5 1 0.8 26 1240 12.1 7
30 X 1.5 1 0.8 26 1300 12.1 7
33 X 1.5 1 0.8 28 1420 12.1 7
37 X 1.5 1 0.8 28 1535 12.1 7
44 X 1.5 1 0.8 31 1800 12.1 6
52 X 1.5 1 0.8 33 2050 12.1 6
61 X 1.5 1 0.8 35 2300 12.1 6





  • TABLE – 5 MULTICORE ALUMINIUM CONDUCTOR PVC INSULATED & PVC SHEATHER G.I. STRIP  ARMOURED CABLES ACCORDING TO IS : 1554/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
10 X 2.5 1 0.9 21 810 7.41 15
12 X 2.5 1 0.9 22 890 7.41 14
14 X 2.5 1 0.9 23 1000 7.41 13
16 X 2.5 1 0.9 24 1083 7.41 13
19 X 2.5 1 0.9 25 1325 7.41 12
21 X 2.5 1 0.9 26 1380 7.41 11
24 X 2.5 1 0.9 28.5 1520 7.41 11
27 X 2.5 1 0.9 29 1665 7.41 10
30 X 2.5 1 0.9 30 1795 7.41 10
33 X 2.5 1 0.9 31.5 1890 7.41 10
37 X 2.5 1 0.9 34 2105 7.41 10
44 X 2.5 1 0.9 35.5 2460 7.41 9
52 X 2.5 1 0.9 38.5 3795 7.41 8
61 X 2.5 1 0.9 40.5 3170 7.41 8
