A2XY UN-armoured

A2XY

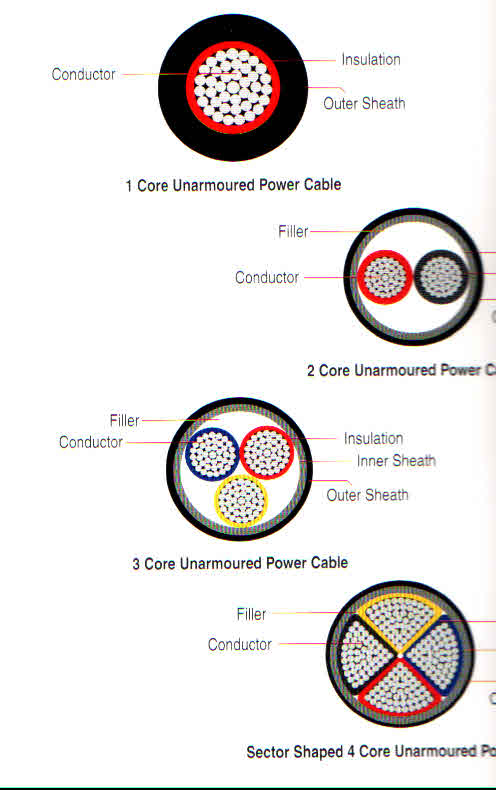

Cable Structure

    • Class : 2 Stranded Aluminium Wire As Per IS:8130
    • Insulated : XLPE AS Per IS:7098/Pt.1/1988
    • Core Identification :
      • 1 Core : Black / Red / White
      • 2 Core : Black,Red
      • 3 Core : Black,Yellow,Blue
      • 4 Core : Black,Yellow,Blue & Black
    • Inner Sheath : PVC ST2 Grade as IS:5831
    • Outer Sheath : PVC ST2 Grade as per IS:5831
Category:

Enquiry about A2XY

Standard References :

  • IS:7098/Pt. 1/1988

Special Features :

  • Light Weight
  • Good Thermal Properties Than PVC Variant
  • Good Strength than PVC variant
  • Low Current Leakage Than PVC Variant

Variants :

  • FR
  • FRLS

Application Range

  • General And Industrial Application Plant Wiring
  • Over Group Cables

Technical Data

  • Temperature Range : -15°C to +90°C
  • Test Voltage : a.c.3 KV (rms)
  • Insulation Resistance : 1 x 1014 ohm-CM
  • Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable)
  • Short Circuit Temperature: 250°C
  • Voltage Rated : 650 / 1100 Volts





  •  TABLE – 1   SINGLE CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED UNARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Cable Diameter Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
1 x 4.0 3 0.7 8 65 7.41 31
1 x 6.0 3 0.7 8.5 76 4.61 39
1 x 10.0 7 0.7 9.5 90 3.08 53
1 x 16.0 7 0.7 10 115 1.91 73
1 x 25.0 7 0.9 12 155 1.2 98
1 x 35.0 7 0.9 13 180 0.868 121
1 x 50.0 19 1 14 240 0.641 150
1 x 70.0 19 1.1 16 310 0.443 187
1 x 95.0 19 1.1 17.5 385 0.329 230
1 x 120.0 37 1.2 19 470 0.253 268
1 x 150.0 37 1.4 21.5 600 0.206 309
1 x 185.0 37 1.6 23.5 710 0.164 360
1 x 240.0 61 1.7 26 900 0.125 433
1 x 300.0 61 1.8 28.5 1075 0.1 501
1 x 400.0 61 2 33 1385 0.0778 596
1 x 500.0 61 2.2 36 1650 0.0605 693
1 x 630.0 91 2.4 40 2100 0.0469 814
1 x 800.0 91 2.6 46 2730 0.0221 890
1 x 1000.0 91 2.8 52 3350 0.0176 1050







  • TWO / THREE / FOUR CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED UNARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
 Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current rating (Amp)
SQ.MM
2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core
4 3 0.7 13 15.5 16 150 160 180 7.41 42 31 31
6 3 0.7 14 16 17.5 180 190 215 4.61 53 50 50
10 7 0.7 16 18 18.5 225 230 250 3.08 72 67 67
16 6 0.7 14 18 19.5 225 310 260 1.91 98 67 67
25 6 0.9 17 20 23 330 460 350 1.2 132 70 70
35 6 0.9 19 21.5 26 410 575 550 0.868 156 96 96
50 6 1 21 24.5 28 510 700 680 0.641 198 117 117
70 12 1.1 23 29 33 675 990 875 0.443 246 142 142
95 15 1.1 26.5 32.5 36.5 900 1250 1200 0.32 294 179 179
120 15 1.2 28.5 34.5 40.5 1050 1525 1530 0.253 336 221 221
150 15 1.4 32 38.5 44.5 1215 1900 1850 0.206 384 257 257
185 30 1.6 35.5 43.5 50 1510 2380 2280 0.164 444 292 292
240 30 1.7 39.5 48.5 56.5 1900 3000 2800 0.125 510 337 337
300 30 1.8 43.5 51.5 58 890 3750 4600 0.1 456 455 455
400 53 2 49 59.5 65.5 1050 4780 6000 0.0778 525 530 530



  • THREE AND HALF CORE ALUMINIUM  CONDUCTOR XLPE INSULATED & PVC SHEATHER  UNARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
M N M N M N
3.5 X 25 6 6 0.9 0.7 22 525 1.2 1.91 96
3.5 X 35 6 6 0.9 0.7 24 625 0.868 1.91 117
3.5 X 50 6 6 1 0.9 27.5 800 0.641 1.2 142
3.5 X 70 12 6 1.1 0.9 31 1100 0.443 0.868 179
3.5 X 95 15 6 1.1 1 35 1400 0.32 0.641 221
3.5 X 120 15 12 1.2 1.1 37.5 1650 0.253 0.868 257
3.5 X 150 15 12 1.4 1.1 41 2000 0.206 0.868 292
3.5 X 185 30 15 1.6 1.1 46.5 2550 0.164 0.32 337
3.5 X 240 30 15 1.7 1.2 52.5 3200 0.125 0.253 399
3.5 X 300 30 15 1.8 1.4 56 4000 0.1 0.206 455
3.5 X 400 53 30 2 1.6 64 5250 0.0778 0.164 530
