A2XWY AL XLPE

A2XWY

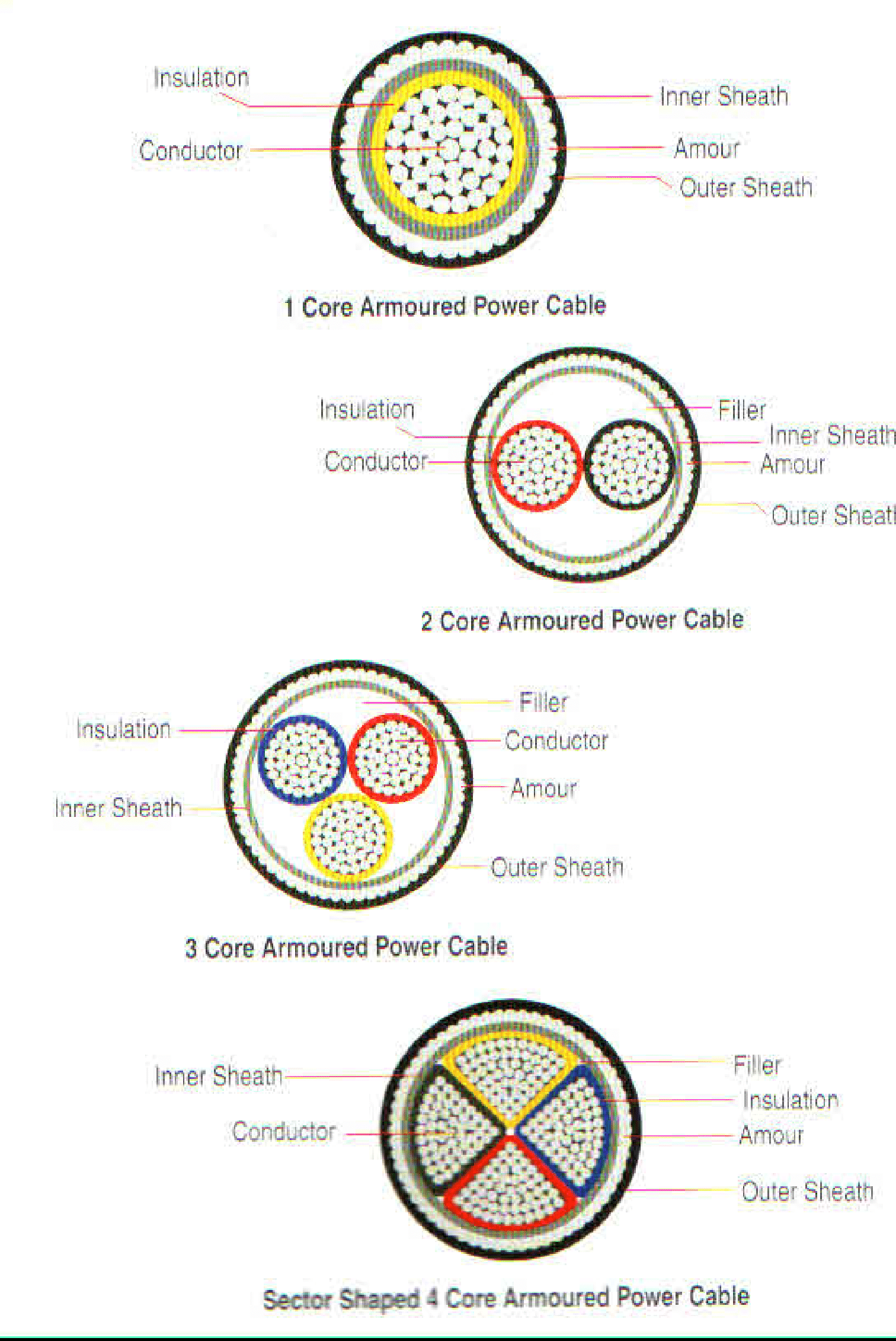

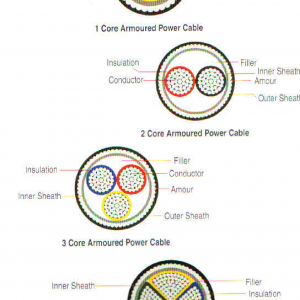

Cable Structure

    • Class : 2 Stranded Aluminium Wire As Per IS:8130
    • Insulated : XLPE AS Per IS:7098
    • Core Identification :
      • 1 Core : Black / Red / White
      • 2 Core : Black,Red
      • 3 Core : Black,Yellow,Blue
      • 4 Core : Black,Yellow,Blue & Black
    • Inner Sheath : PVC (Polyvinyl chioride) ST2 Grade as IS:5831
    • Armouring : H.D.Aluminium / G.I. wire as per IS:3975
    • Outer Sheath : PVC ST2 Grade as per IS:5831
Category:

Enquiry about A2XWY

Standard References

  • IS:7098/Pt. 1/1988

Special Features

  • Good Thermal Properties Than PVC Variant
  • Light Weight
  • Good Strength than PVC variant
  • Low Current Leakage Than PVC Variant

Variants :

  • FR
  • FRLS

Application Range

  • General And Industrial Application Plant Wiring
  • Under And Ground Cables Which Require High Physical Strength

Technical Data

  • Temperature Range : -15°C to +90°C
  • Test Voltage : a.c.3 KV (rms)
  • Insulation Resistance : 1 x 1014 ohm-CM
  • Min. Bending Radius : 12 x OD (OD = Overall Diameter of Cable)
  • Short Circuit Temperature:/b>  250°C
  • Voltage Rated : 650 / 1100 Volts



  • DIMENSIONAL TABLES,POWER CABLES-ALUMINIUM / XLPE/ WIRE ARMOURED / PVC TABLE – 1 SINGLE CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED H.D.AL.WIRE ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
1 x 4.0 3 1 10.5 140 7.41 42
1 x 6.0 3 1 11.5 160 4.61 54
1 x 10.0 7 1 12.5 185 3.08 65
1 x 16.0 7 1 13 220 1.91 73
1 x 25.0 7 1.2 14 260 1.2 98
1 x 35.0 7 1.2 15 310 0.868 121
1 x 50.0 19 1.3 17 380 0.641 150
1 x 70.0 19 1.4 19 480 0.443 187
1 x 95.0 19 1.4 22 640 0.32 230
1 x 120.0 37 1.5 23.5 745 0.253 268
1 x 150.0 37 1.7 24.5 850 0.206 309
1 x 185.0 37 1.9 26.5 1000 0.164 360
1 x 240.0 61 2 29 1215 0.125 433
1 x 300.0 61 2.1 31.5 1475 0.1 501
1 x 400.0 61 2.4 36.5 1925 0.0778 596
1 x 500.0 61 2.6 39.5 2300 0.0605 693
1 x 630.0 91 2.8 43 2800 0.0469 814
1 x 800.0 91 3.1 53.4 5154 0.0367 890
1 x 1000.0 91 3.3 58.9 6106 0.0291 1050







  • TWO / THREE / FOUR CORE ALUMINIUM CONDUCTOR XLPE INSULATED & PVC SHEATHED G.I. WIRE ARMOURED CABLES ACCORDING TO IS : 7098/PT. 1/1988
 Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current rating (Amp)
SQ.MM
2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core 2 Core 3 Core 4 Core
4 3 0.7 15.5 16 17 460 510 560 7.41 34 31 31
6 3 0.7 16.5 17 18.5 535 580 625 4.61 44 50 50
10 7 0.7 18 19 20.5 565 680 765 3.08 59 67 67
16 6 0.7 17 21 25.5 570 750 895 1.91 74 70 70
25 6 0.9 20 23 28 790 990 1150 1.2 98 96 96
35 6 0.9 22 25 31 910 1150 1325 0.868 124 117 117
50 6 1 24 27 36 1050 4400 1640 0.641 156 142 142
70 12 1.1 27 32 39.5 1325 1950 2175 0.443 188 179 179
95 15 1.1 30.5 37.5 44 1750 2300 2775 0.32 231 221 221
120 15 1.2 33 39.5 49.5 2000 2700 3250 0.253 262 257 257
150 15 1.4 36 43.5 54 2250 3200 4175 0.206 300 292 292
185 30 1.6 40 48.5 60.5 2750 4200 5000 0.164 344 337 337
240 30 1.7 45 53 78.7 3700 5100 6050 0.125 406 399 399
300 30 1.8 66.76 71.28 88.4 6178 7486 9032 0.1 440 430 430
400 30 2 74.8 79.9 36.5 7398 9065 11004 0.0778 500 490 490







  • THREE AND HALF CORE XLPE INSULATED & PVC SHEATHER ARMOURED CABLES ACCORDING TO IEC 60502
Core Size Stranding(Minimum No. of Strands) Nominal Thickness of Insulation(mm) Nominal Overall Diameter(mm) Approx. Weight (Kg/Km) Max DC Resistance at 20 Degree C Current Rating(amp)
SQ.MM
M N M N M N
3.5 X 25 6 6 0.9 0.7 25.5 1050 1.2 1.91 96
3.5 X 35 6 6 0.9 0.7 26.5 1200 0.868 1.91 117
3.5 X 50 6 6 1 0.9 29.5 1500 0.641 1.2 142
3.5 X 70 12 12 1.1 0.9 34 2050 0.443 0.868 179
3.5 X 95 15 15 1.1 1 38 2450 0.32 0.641 221
3.5 X 120 15 15 1.2 1.1 41 2800 0.253 0.868 257
3.5 X 150 15 15 1.4 1.1 45 3350 0.206 0.868 292
3.5 X 185 30 30 1.6 1.1 50 4500 0.164 0.32 337
3.5 X 240 30 30 1.7 1.2 56 5450 0.125 0.253 399
3.5 X 300 30 30 1.8 1.4 64.7 7507 0.1 0.206 430
3.5 X 400 30 30 2 1.6 70.9 8957 0.0778 0.164 490
